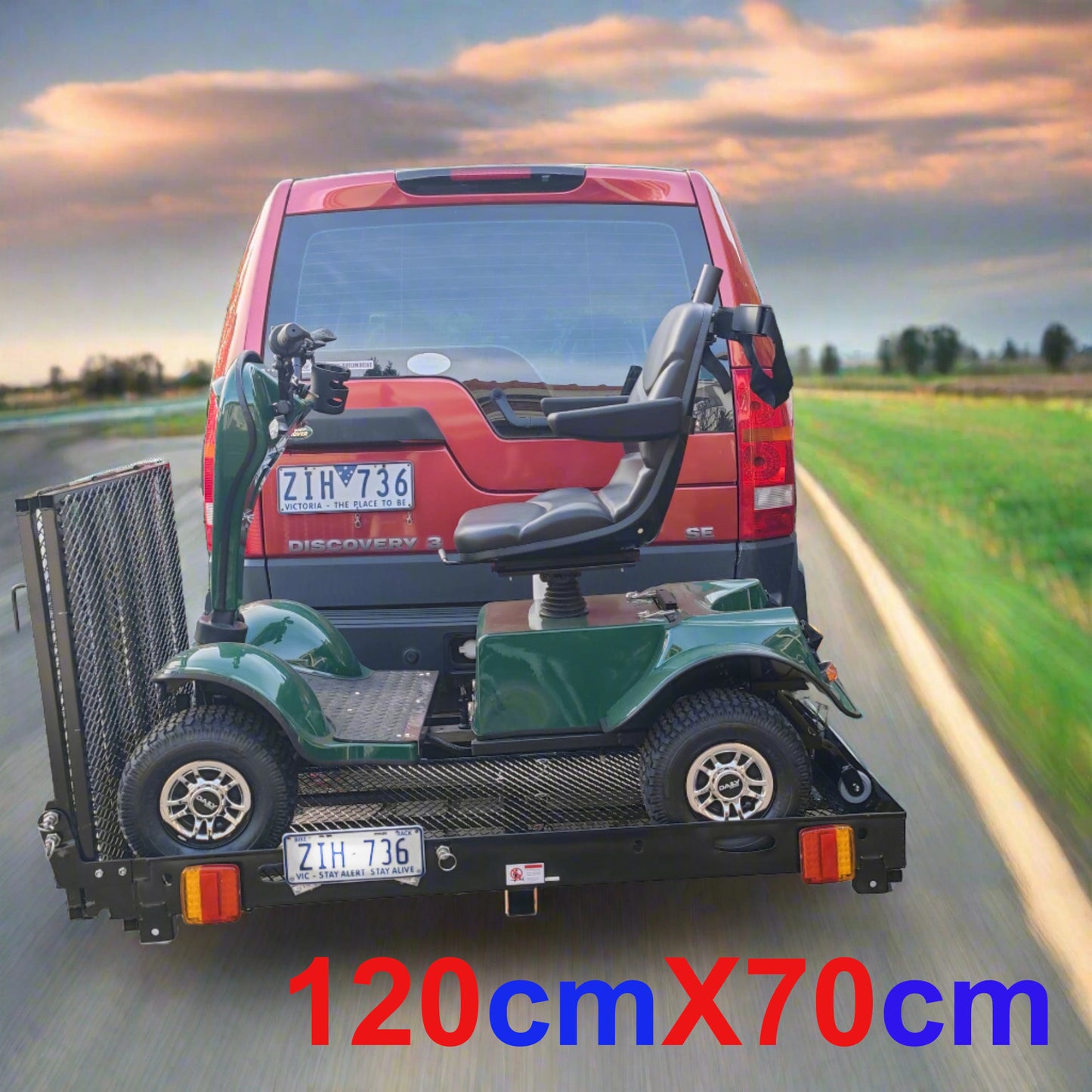

The SC500XL towbar folding ramp carrier is a top-quality solution for transporting mobility devices like scooters and power wheelchairs. Built for convenience, safety, and durability, it’s an excellent choice for hassle-free transportation.
Now upgraded with a gas strut for easier folding, this model is especially user-friendly for seniors.
Key Features
1. All-In-One Design with LED Lights and Gas Strut
Equipped with full-function LED lights, a 7-pin flat plug, and a number plate light.
Features a gas strut to assist with folding the carrier, making it significantly easier to operate.
Includes pre-drilled holes and screws for securely attaching your license plate.
2. Heavy-Duty Hitch Tube
Durable 2" hitch tube secured by 4 bolts and a safety pin for easy removal.
Includes a 5/8" hitch pin hole, compatible with class III or IV hitches.
3. Easy-to-Use Folding Ramp
Welded handle for simple folding and unfolding.
Ramp positions:
Storage: Folded flat against the carrier for space-saving storage.
Loading: Unfolded for pushing or driving devices onto the carrier.
Transport: Stood upright to secure devices in place with a spring pull pin.
4. Safety and Convenience
Tall ramp sides with 10 tie-down holes for securely fastening devices.
Built-in carrying handles for easy installation and handling.
Model Comparison
SC500: 120cm x 70cm
SC500XL: 150cm x 84cm (featured model) Both models have the same load capacity and features, differing only in size.
Important Notes
Hitch Compatibility:
Ensure your vehicle has a 50mm x 50mm (2") square hitch.
A minimum distance of 15.5cm from the hitch pin hole to the rear edge is required. (Spare tyres may interfere.)
Safety Precautions:
Never stand or ride on the carrier.
Verify your tow bar can handle the combined weight of the carrier and your device.
Follow all local road regulations.
Device Fit:
Check that the carrier’s dimensions can accommodate your scooter.
Loading the scooter backwards may help avoid interference from rear baskets or bags.
Vehicle Compatibility:
Ensure your vehicle is large and high enough to prevent the carrier from scraping the ground.
If the tow bar receiver is less than 35cm from the ground, consider using a hitch extension to raise the carrier.
Specifications
Weight Capacity: 226kg
Carrier Dimensions:
Length: 150cm
Width: 84cm
Tray Height: 10cm
Ramp Dimensions:
Length: 150cm
Width: 78cm
Ramp Position: Left side
Pin Hole Distance:
Folded: 15.5cm
Unfolded: 38cm
Carrier Weight: 44kg
Colour: Black
Hitch Compatibility: 50mm x 50mm (2" x 2") hitch
Warranty: 12 months
Package Includes
1x Carrier with ramp
1x Gas strut
1x Hitch tube (no hitch bolt)
2x LED lights (one with number plate light)
1x 7-pin flat plug
1x Moving wheel
1x License plate screws set
1x User manual
The SC500XL Towbar Folding Ramp Carrier is the perfect companion for safely and conveniently transporting your mobility devices. Order now and enjoy a stress-free transport solution!
